Technical Advantages of The Product
◆ Freer, more elegant and healthier non-contact operation.
◆ The system is capable of detecting living person.
◆ Dual identifications of palm-print and vein with high accu- racy and fast speed.
◆ Highly user-friendly and non-invasive identification.
◆ Support the application in outdoor environment, which is dust- proof, waterproof and anti-glare interference.
◆ Offer standard interface and complete secondary develop- ment environment and capable of build multiple customized system solutions.
Non-contact Palm-print and Vein Identification Technology ——Upscale biometrics Technology ofNew Generation in High Precision,High Safety
and Identification ofLiving Persons
Beijing Whois Technologies Co., Ltd. is a hi-tech enterprise integrating development, production and sale. It's jointly invested and founded by units affiliated to Beijing Academy of Science and Technology. The Company has taken 5 years to develop non-contact palm-print and vein identification system with multiple independent intellectual prop- erty rights and core algorithms. The system, forthe first time, integrates the two biological features of palm-print and vein and fills in the gap in multi-mode biometric technology of living person identification. Com- pared with single biological identification technology, its identification accuracy and safety are higher.
Authenticated by experts from Chinese Academy of Sciences and Beijing Academy of Science and Technology, the non-contact palm-print and vein identification technology has reached globally advanced level. Its products are widely applicable to prisons, banks and other upscaled security systems. Granted with multiple awards in the sector in succession, the Company has passed ISO9001 and ISO14001 ce- rtifications and possessed a total of 10 patents and 8 software cop- yrights. Its series of products have passed the test ofTesting Center for Quality of Security & Police Electronic Products under the Ministry of Public Security of P. R. China and CE certification.
The Company was designated as one ofthe first fourteen equity incen- tive pilot units in Zhongguancun National Demonstration Zone in Sep- tember 2009. At present, it has formed a R&D team predominated by doctors and masters and a batch of high-quality management, produc- tion and marketing team. As a leading enterprise in domestic biological identification, the core concept of“technology makes me feel freer” has deeply rooted in the Company and to create safer and more convenient hi-tech identity verification products is the eternal pursuit ofWHOIS.
B04/“Palm Access Series” palm-print and vein recognizer (outdoor)
Technical parameters of the product:
Identification mode: palm-print and vein (1:N),
group + palm-print and vein(1:N);
ID/IC card+ palm-print and vein(1:1) ;
ID/IC card only(1:1)
Identification accuracy: false acceptance rate will be ＜0.0001%, if false rejection rate is 0.01%;
User capacity: 1000 people(1:N);40,000 people(1:1 or group identification)
Identification speed: <1s (1:N, N<1000)
Log capacity : 1,000,000 pieces
Operating voltage: DC12V
Rating power: 10W
Operating environment: temperature -25~60℃, humidity 3%RH～95%RH
Protection level: IP54
Type of interface: RJ45, USB2.0, Wiegand26, Wiegand34, lock control interface,
door bell/alarming interface, door switch interface, door sensor interface
Driving capability of lock: supporting 12V DC voltage; operating current≤2A
Supported locks: Various kinds of outage normally-open lock/ outage normally-closed lock
Display system: 3.5-inch industrial LCD screen
IC/ID card module: RFID\ID card
Boundary dimensions:375*238*331(length*width*height) mm
Product features:
Indoor/outdoor use
Contact/non-contact palm-print and vein identification of living persons
Compatible with ID/IC card
Connected to access controller/ Directly control electrical lock
Standalone mode/ online mode

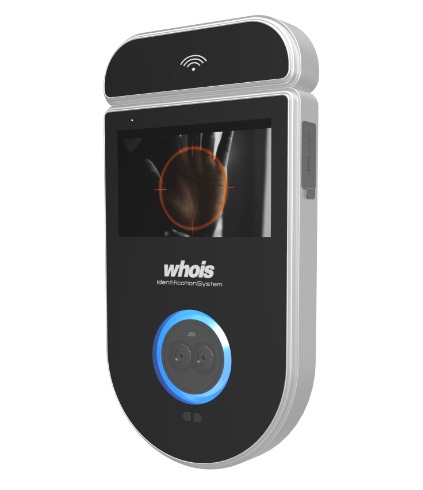

E101a/“Palm Access Series” palm-print and vein recognizer
standard type
extended type
Technical parameters of the product:
Identification mode: standard type: palm-print and vein(1:N)
extended type: palm-print and vein(1:N);
IC card+ palm-print and vein(1:1);
IC card only(1:1)
Identification accuracy: false acceptance rate will be ＜0.0001% if false rejection rate is 0.01%;
User capacity: supporting 500 people at maximum
Identification speed: <1s (1:N, N<500)
Log capacity : 100,000 pieces
Operating voltage: DC12V
Rating power: 10W
Operating environment: temperature 0~50℃, humidity 3%RH～95%RH
Type of interface: RJ45, USB2.0, Wiegand26, Wiegand34, lock control interface, door bell/alarming
interface, door switch interface, door sensor interface
Supported locks: : Various kinds of outage normally-open lock/ outage normally-closed lock
Driving capability of lock: operating current≤2A when electric lock and the product are connected to the
same adapter
Display system: 4-inch capacitive touch panel
Boundary dimensions: standard type:180*112*33(length*width*height) mm
extended type:215*112*33(length*width*height) mm
Product features:
Indoor use
Zinc alloy body Dismountable palm rest
Contact/non-contact palm-print and vein identification of living persons
Connected to access controller/ Directly control electrical lock
Standalone mode/ online mode
U Series /Desktop palm-print and vein collector
U09
U02e
Technical parameters of the product:
Data interface: USB2.0
Operating system: Windows8/NT/XP/Vista
Boundary dimensions: U09:130*100*86 (length*width*height) mm
U02(e): 172*112*92 (length*width*height) mm
Product features:
Palm-print and vein collection of living persons
USB2.0 interface
Linking with computer through USB2.0, it is able to realize palm-print and vein sample information
collection and personal identity verification under support of secondary SDK (with secondary SDK
(non-standard configuration))
Module/USB Sensor Module
Whois USB Sensor series module is specially designed for biological identification product makers in OEM product integration, which is a special sensor module in development of non-contact/contact palm-print and vein identification product. Whois provides special secondary SDK including palm-print and vein collection,identification, certification, etc. The SDK is compatible with Widows 2000/XP/Vista/7/8 and other operating systems in the architecture of X86 and X64 and typical Linux, Android and other Unix systems in the architecture of X6, X64 and ARM (need to be customized).
Technical parameters:
Data interface: USB2.0;
Identification accuracy: false acceptance rate will be ≤0.0001% if false rejection rate is ≤0.01%;
Operating environment: temperature: 0℃-50℃; humidity: 20% -95%;
Peak current: 400mA;
SDK supports:
1. Terminal identification/certification;
2. Central server identification/certification
OS compatibility: secondary SDK is compatible with Widows 2000/XP/Vista/7/8 and other operating
systems in the architecture of X86 and X64 and Linux and Android systems;
Supporting number of people: 1:1 identification—no ceiling for supporting number of people;
1:N identification—supporting 2000 palms in each group;
Identification speed: feature collection control collects features by 10fps/s and speed of feature comparison
is 4000 times/s in each core;
Dimensions: 84*64*25 (length×width×height) mm.
Product features
Linking with processor through USB interface, palm-print and vein identification module is able to achieve palm-print and vein information collection, identification,certification functions under support of secondary SDK.
Typical applications
All kinds of entrance guard and attendance machines;
Product of bank teller authorization;
Social security ID system;
Portable data collection equipment;
Gun and bullet cabinet ID system;
Safe case ID system;
PC machine ID product;
